Album - 1937 Mills Flasher Bell Fruit EM Slot Machine

This is in for a full refurbishment to get working. It costs 10 cents per pull/play. The main mechanism is a hidden 3-reel Bell-style slot machine.

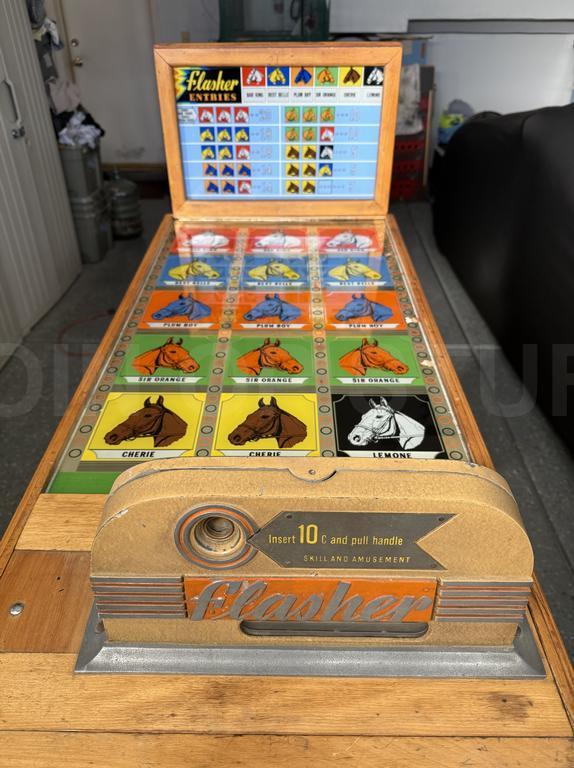

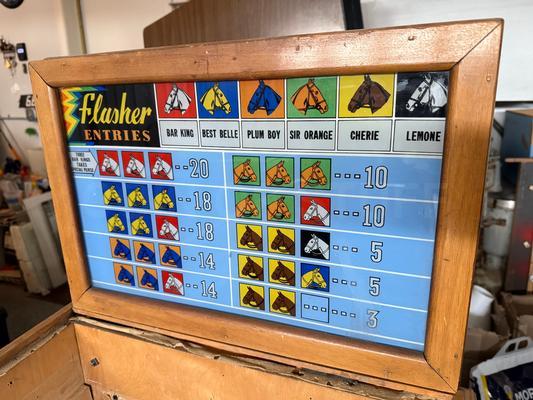

This game is Not A Pinball. It operates like a slot machine. It has a glass playfield with no moving parts, but slot machine symbols are lit from behind after the player pulls the side handle. It pays out according to the award schedule on the backglass into a spring-loaded metal cup located on the front underside of the machine. The Spinning Reels article of September 1937 states that this game uses the same mechanisms as the Mystery Blue Front Bell slot machine of 1933.

Updates:

Fully disassembled mechanism. All parts ran through a parts cleaner bath. Each part will get hand wiped with Laquer Thinner and wire brushed or wire wheeled if needed. The escalator has been fully pulled apart, cleaned, and oiled.

The cabinet has been dusted, cleaned, greased, and oiled where needed. Electrical tested voltages before final test and assembly.

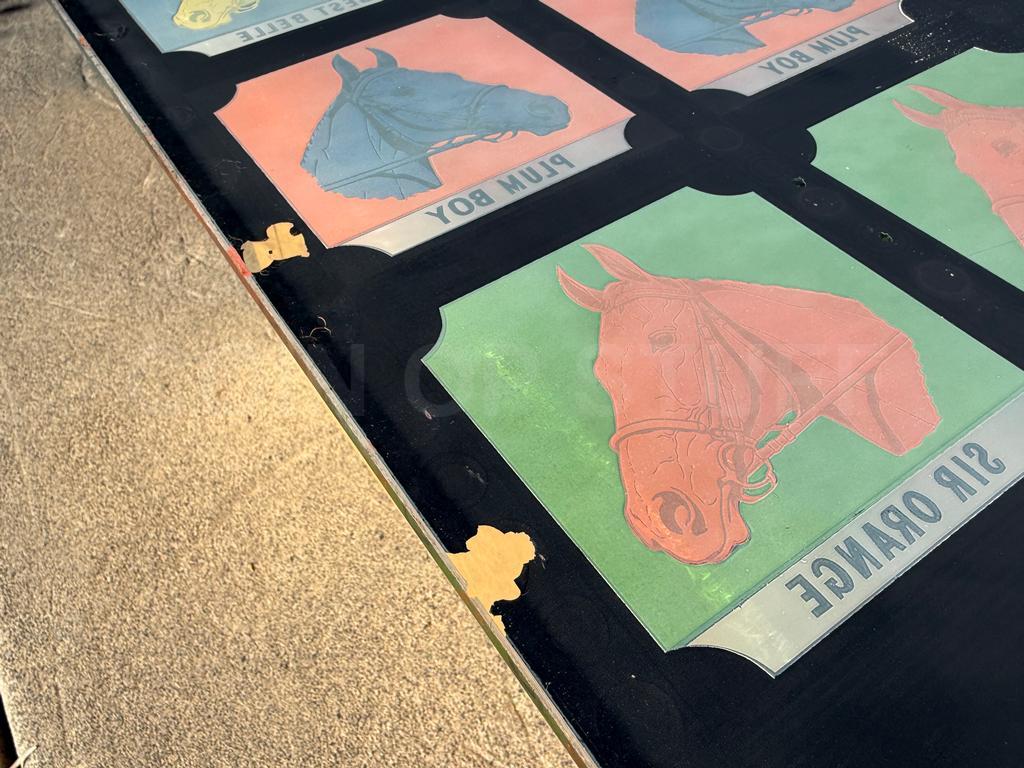

Playfield glass is starting to flake, so a couple of layers of clear coat will keep it from flaking anymore.

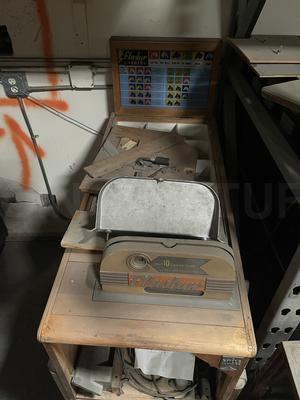

Starting Here First

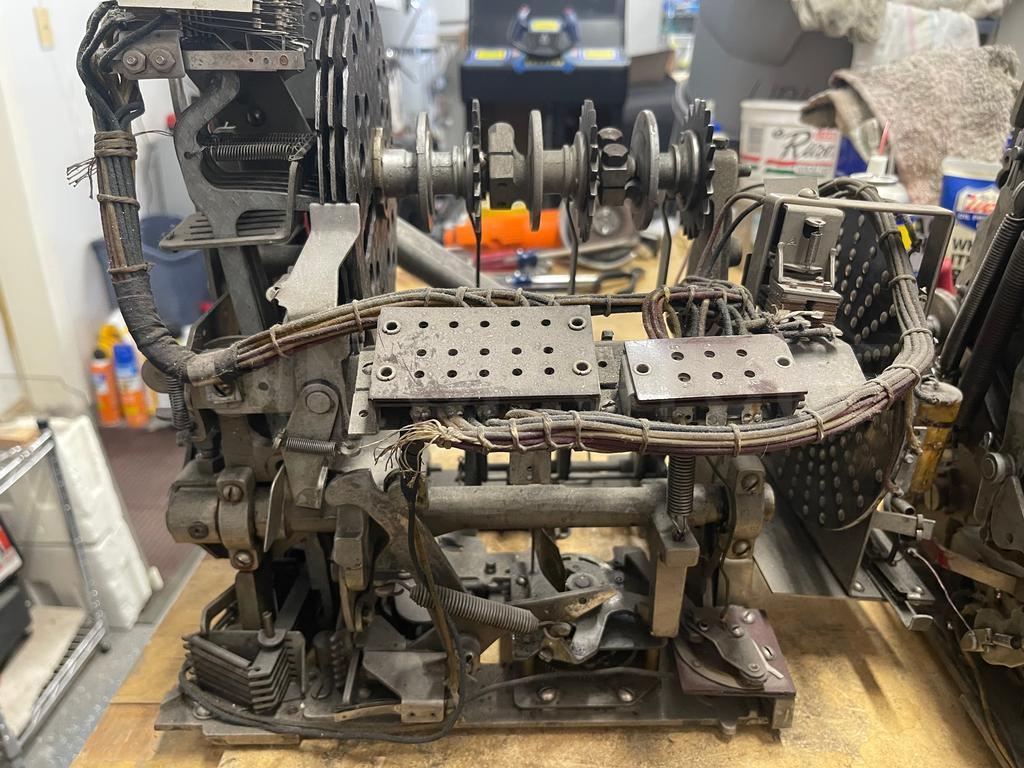

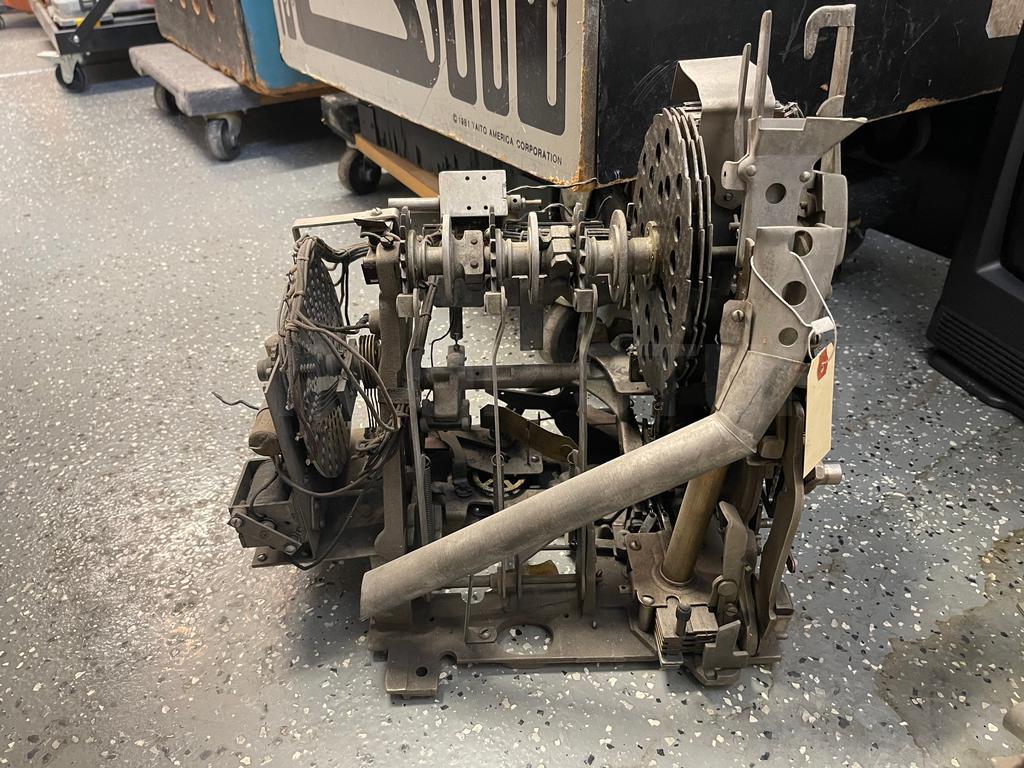

10 Cent Mills Mech

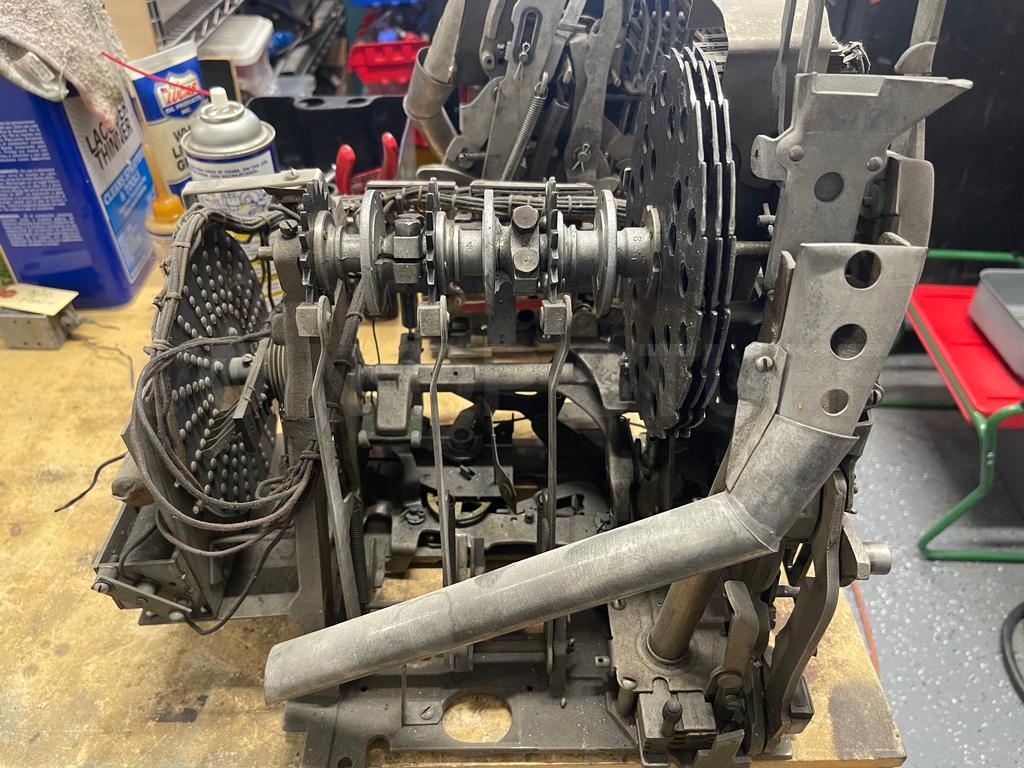

Front Before Teardown

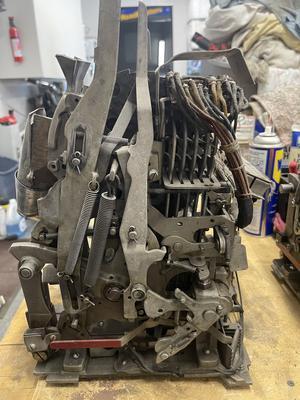

Right Side Before Teardown

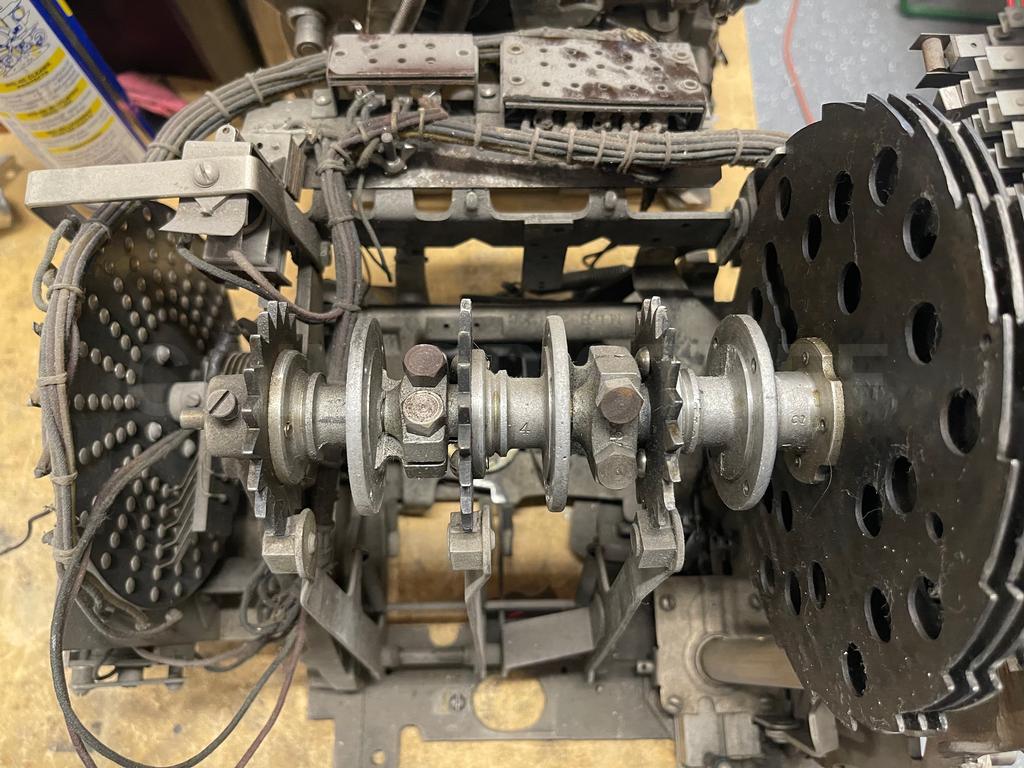

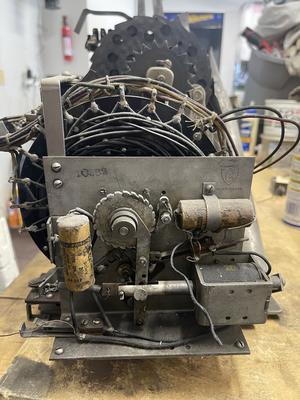

Rear Before Teardown
Left Side Before Teardown
Top Before Teardown

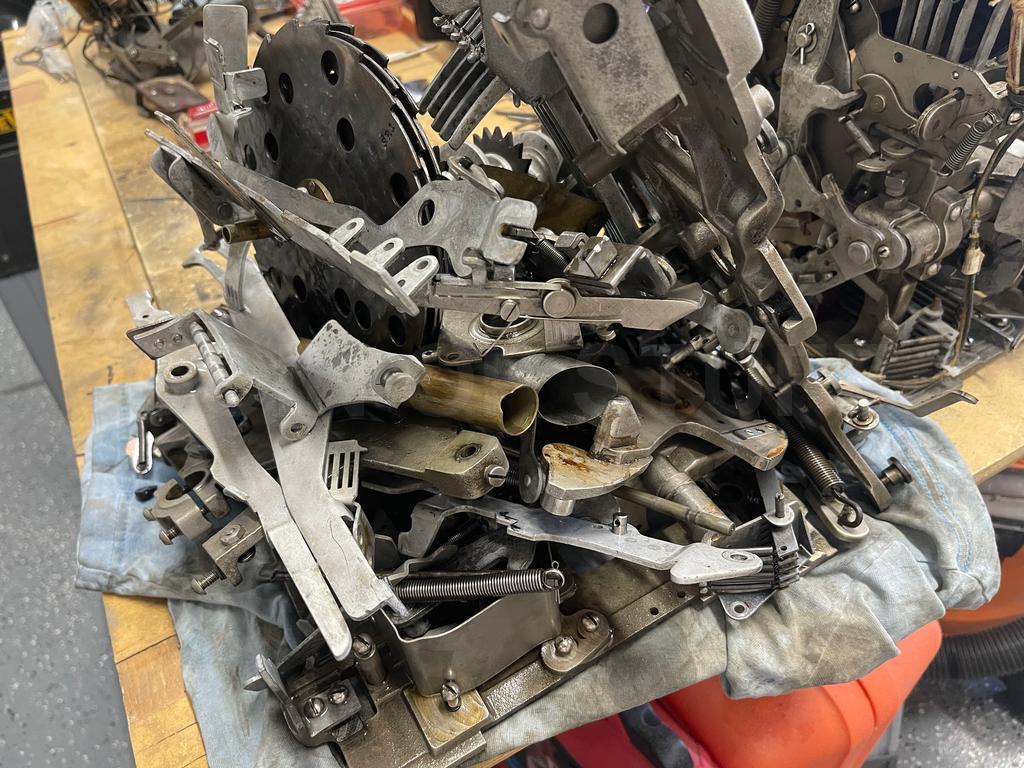

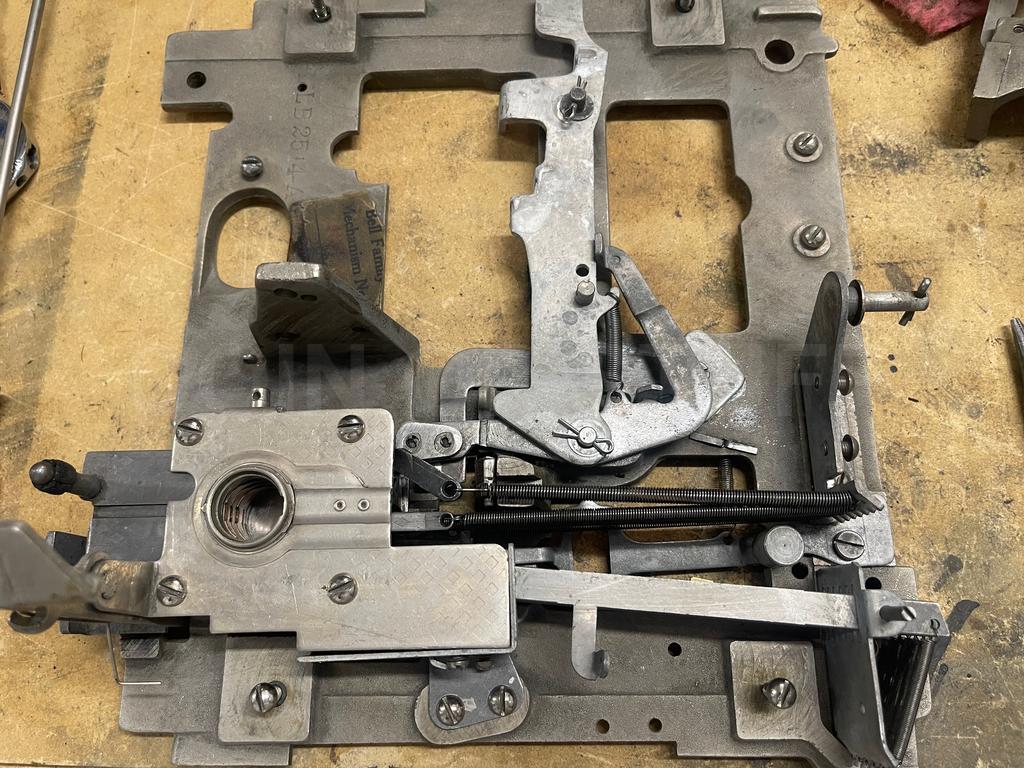

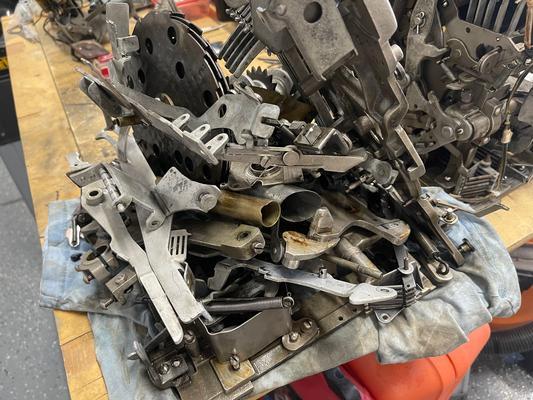

Fresh from the Parts Cleaner
Fresh from the Parts Cleaner

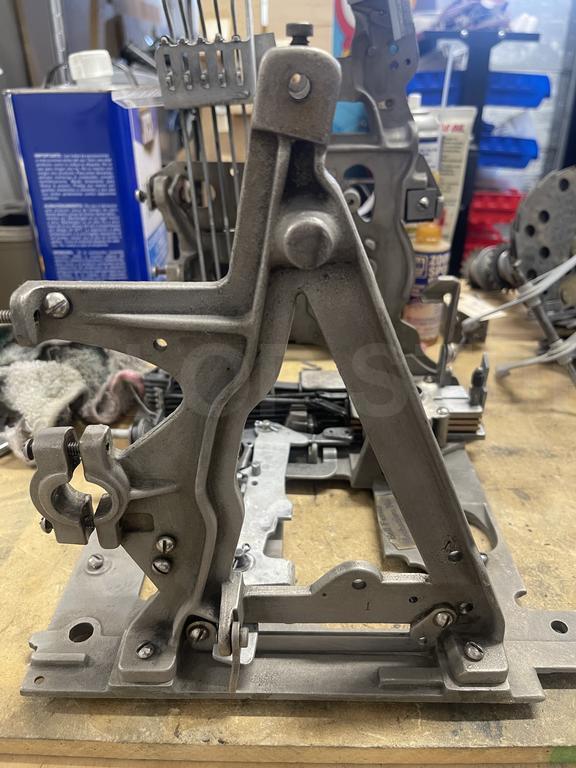

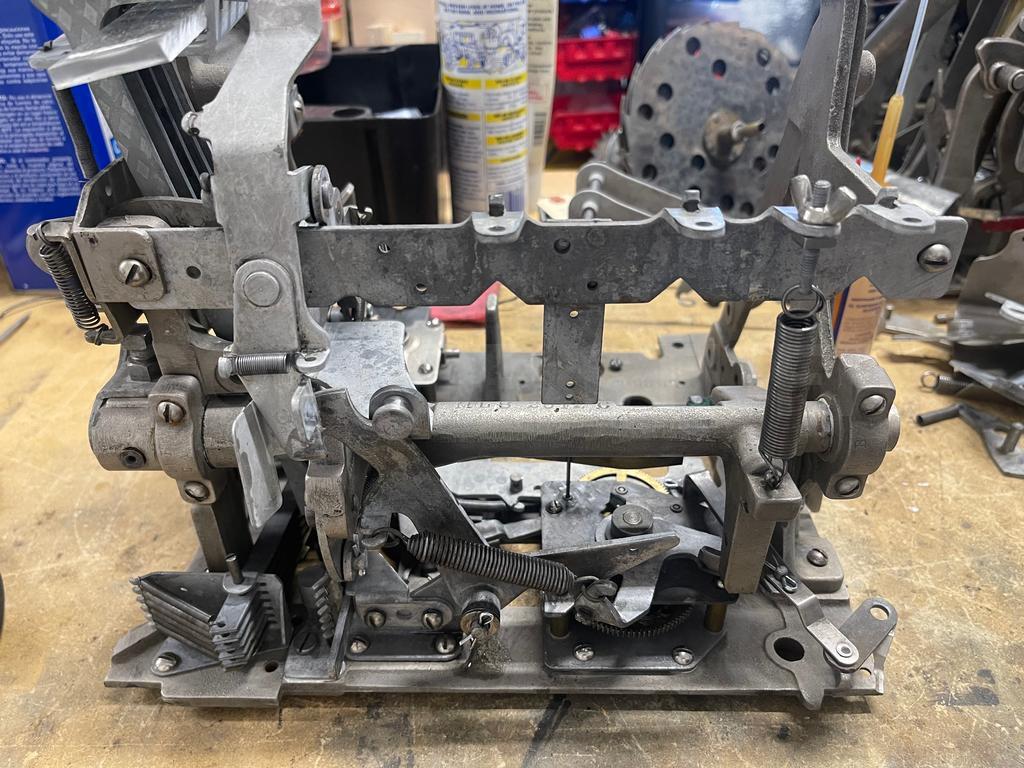

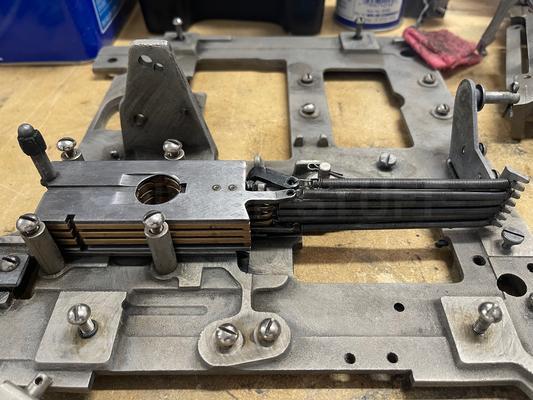

Slides Cleaned and Installed

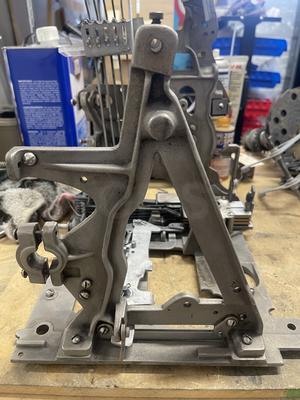

Right Side On
Left Side On

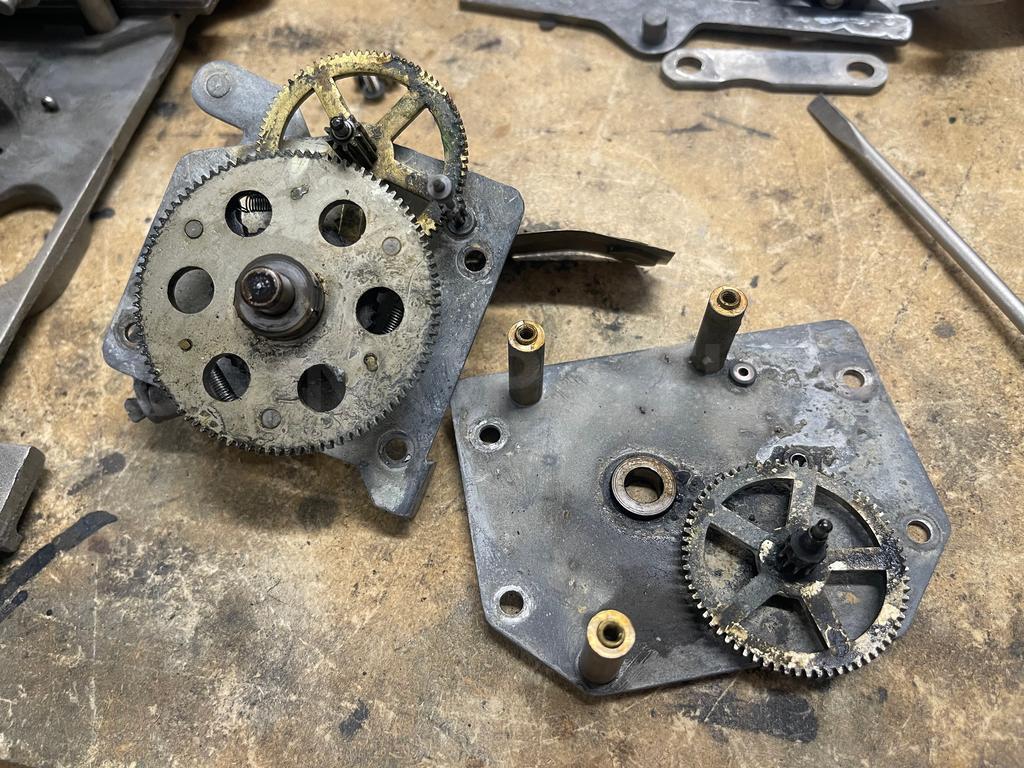

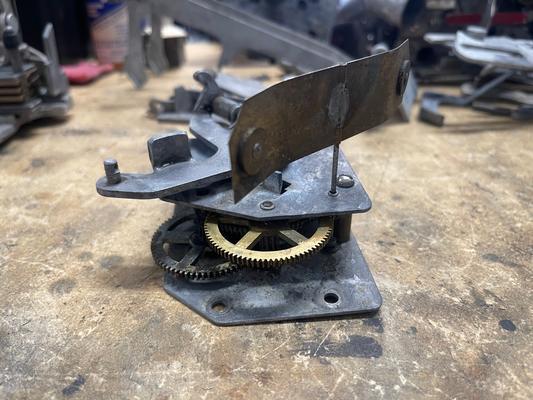

Dirty Clock

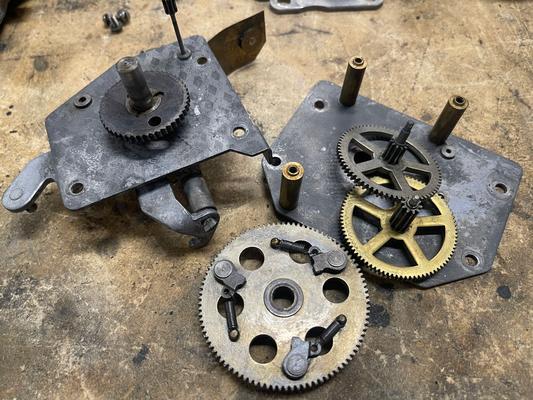

Cleaned Clock

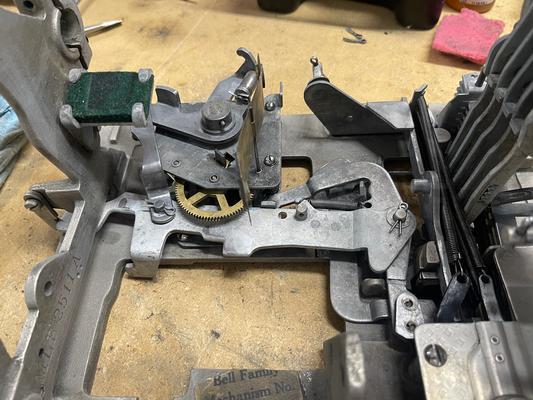

Clock In
Rear On

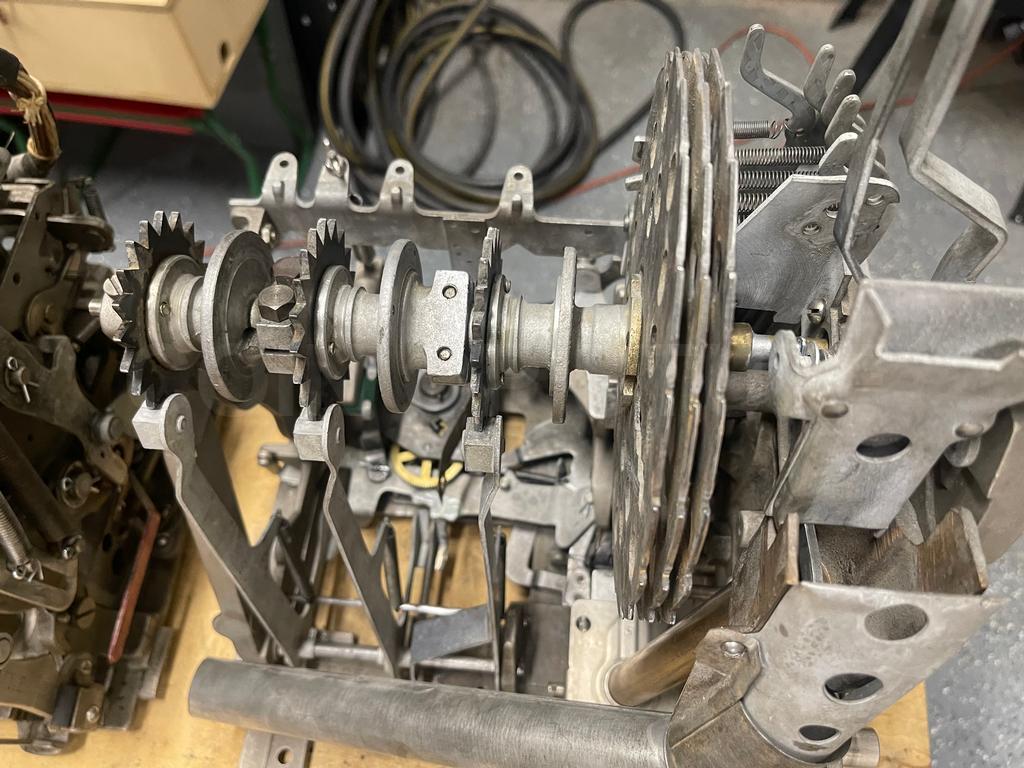

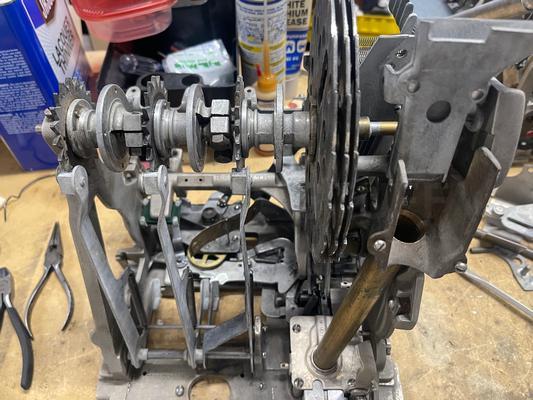

Reels On

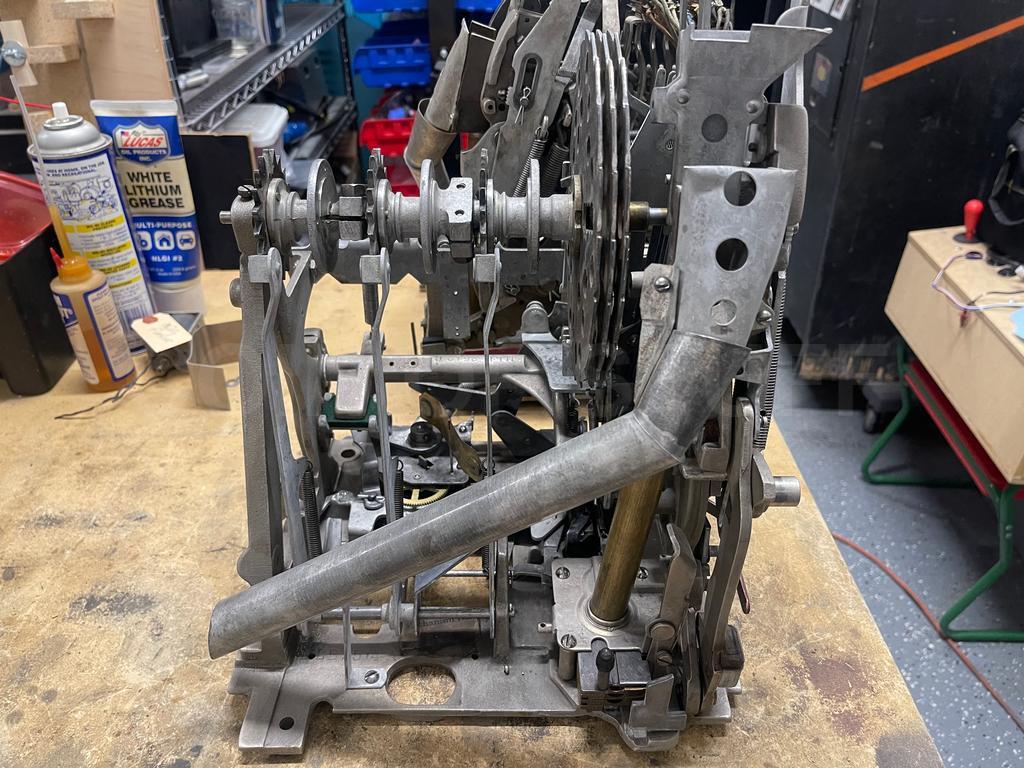

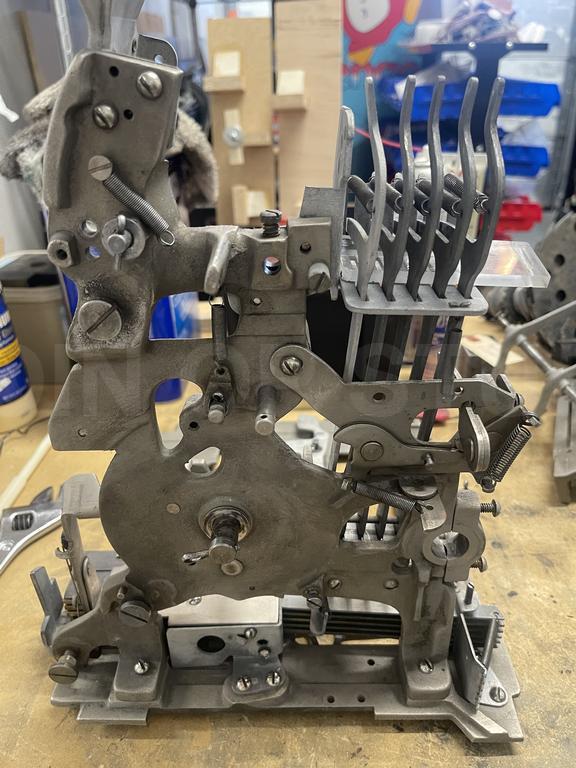

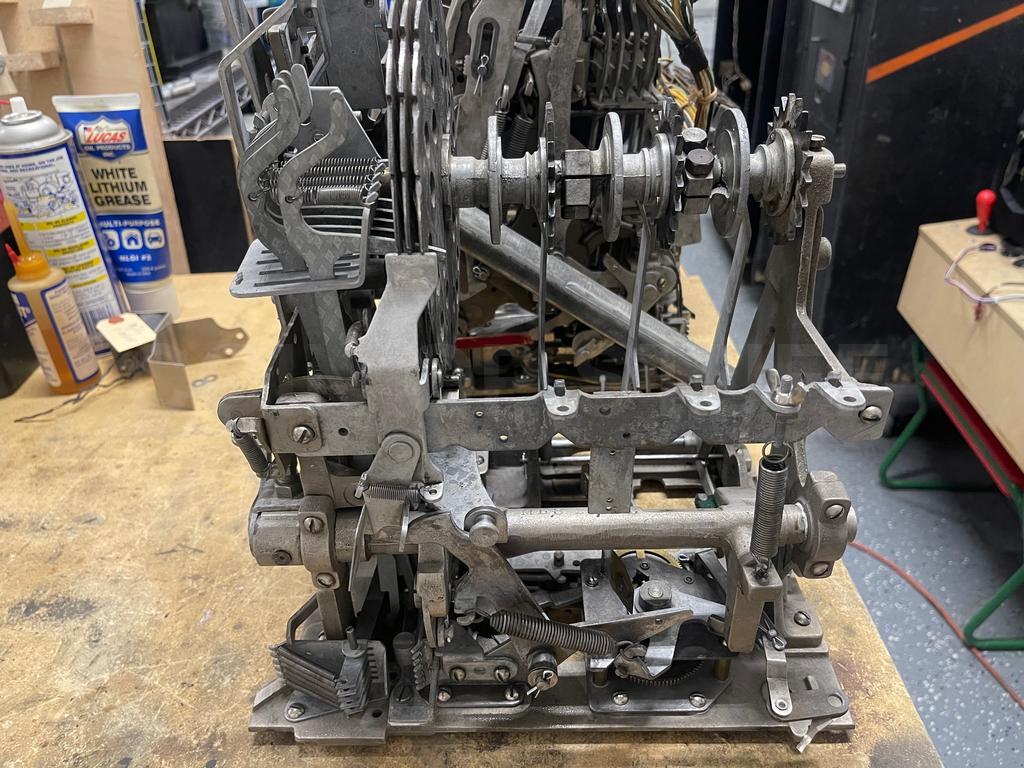

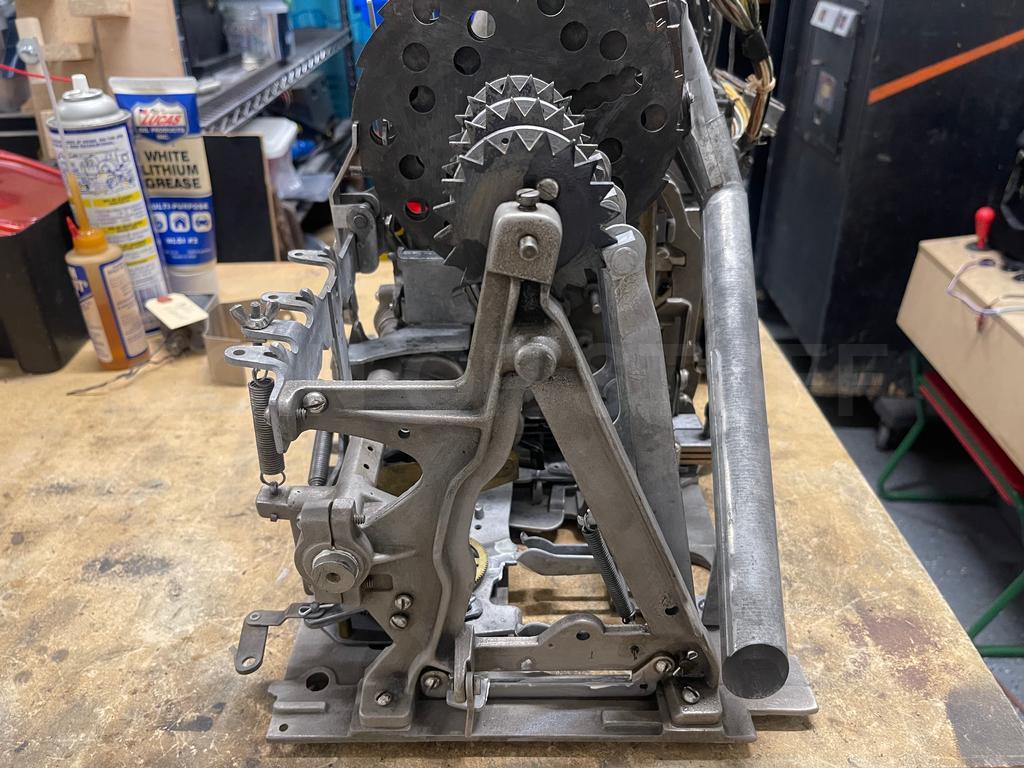

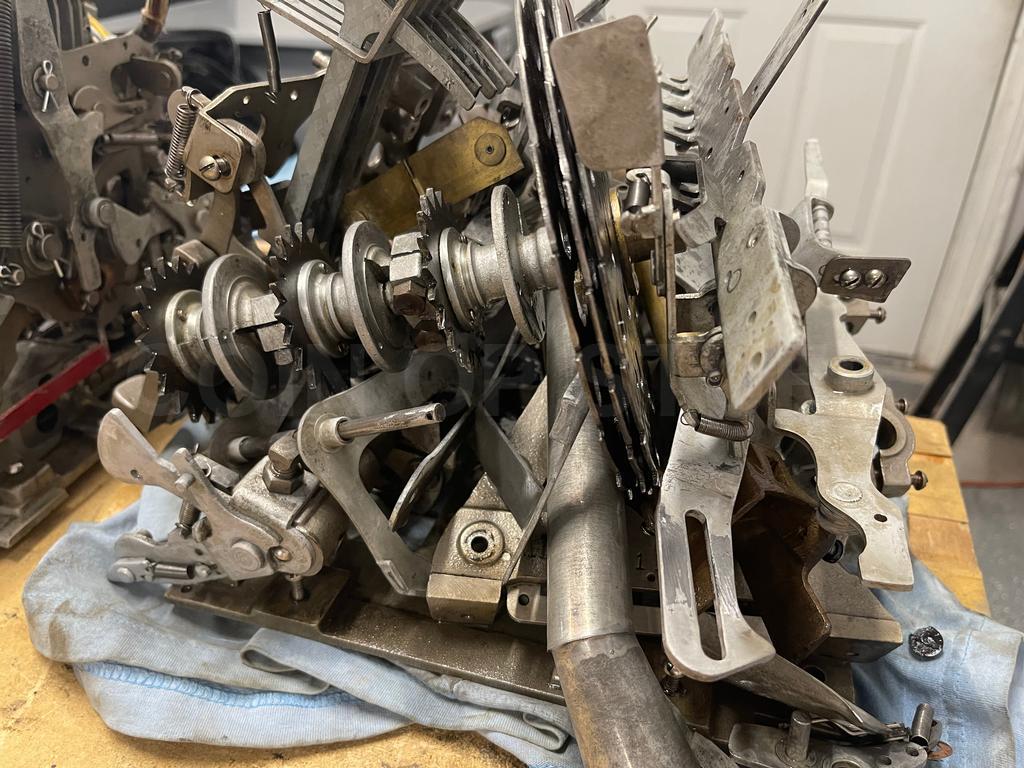

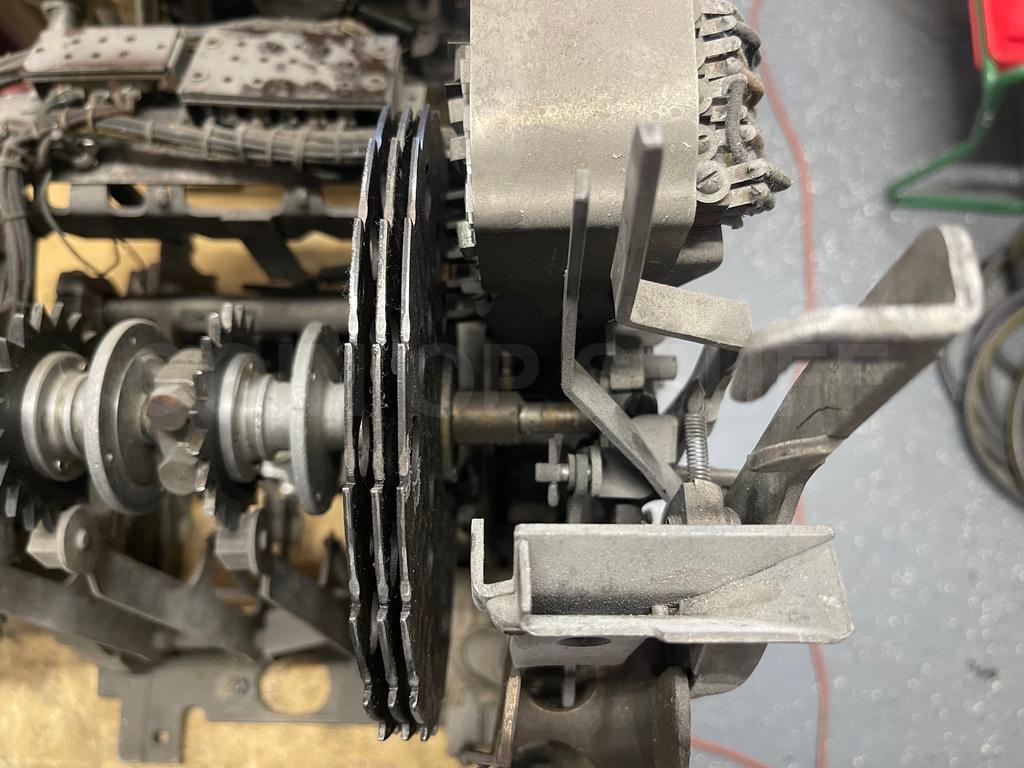

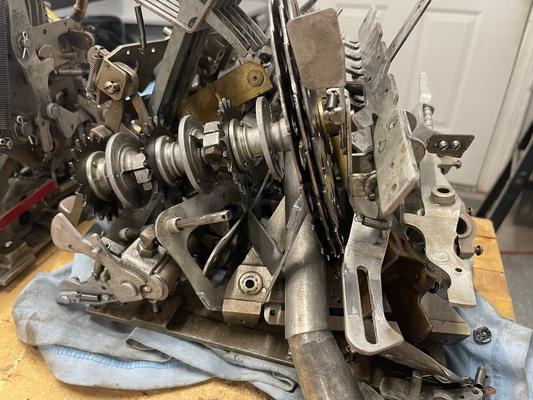

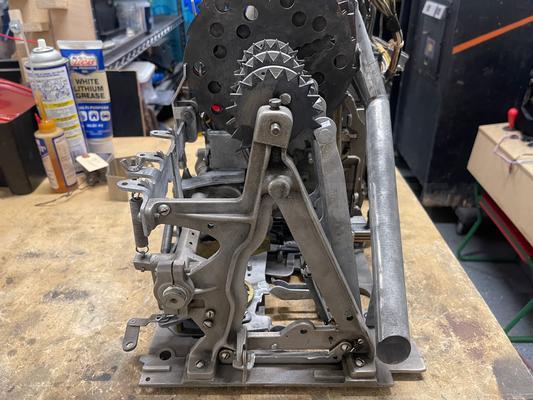

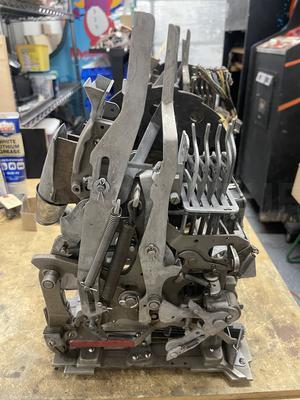

Mechanicals Done
Mechanicals Done
Mechanicals Done
Mechanicals Done
Mechanicals Done

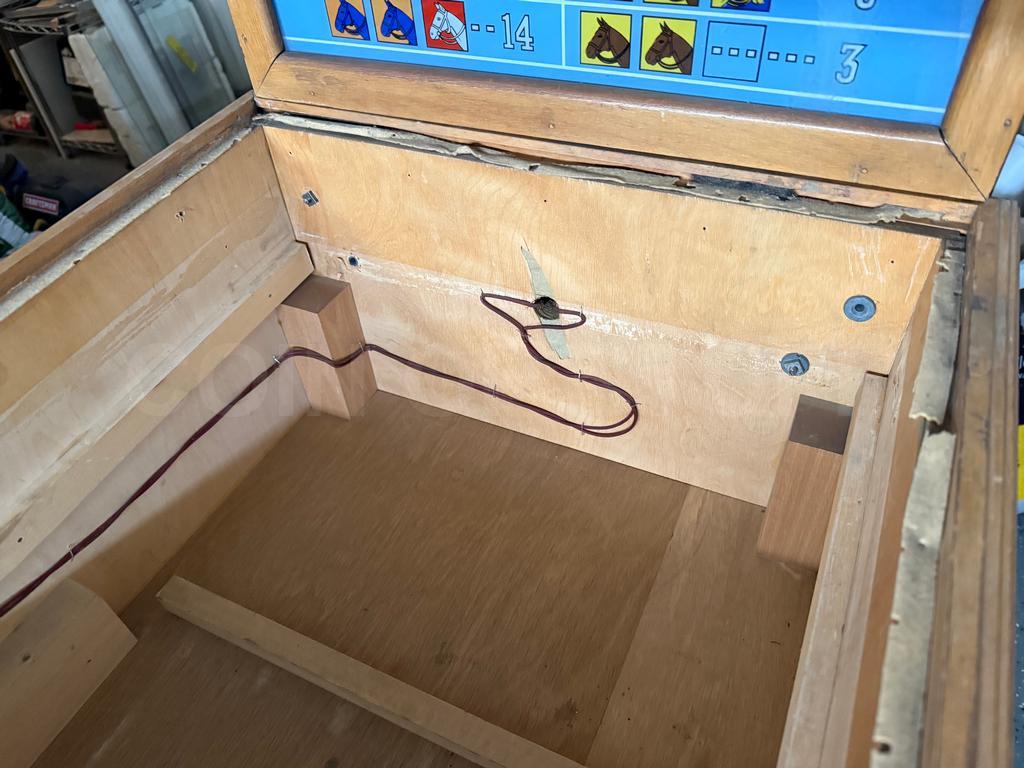

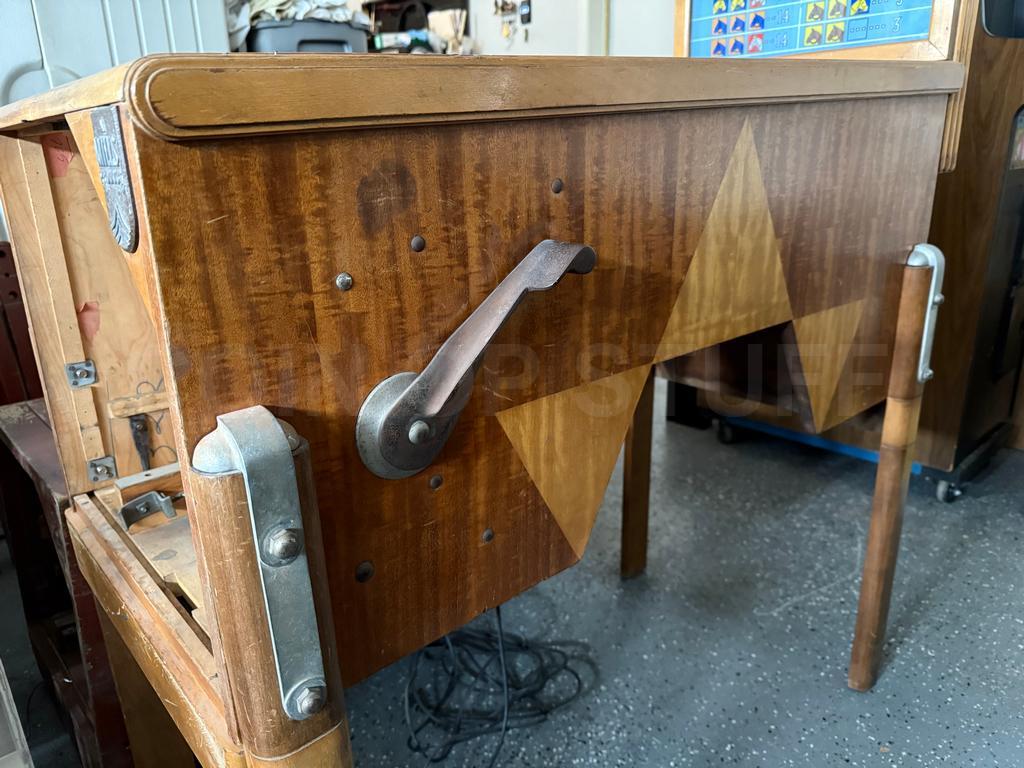

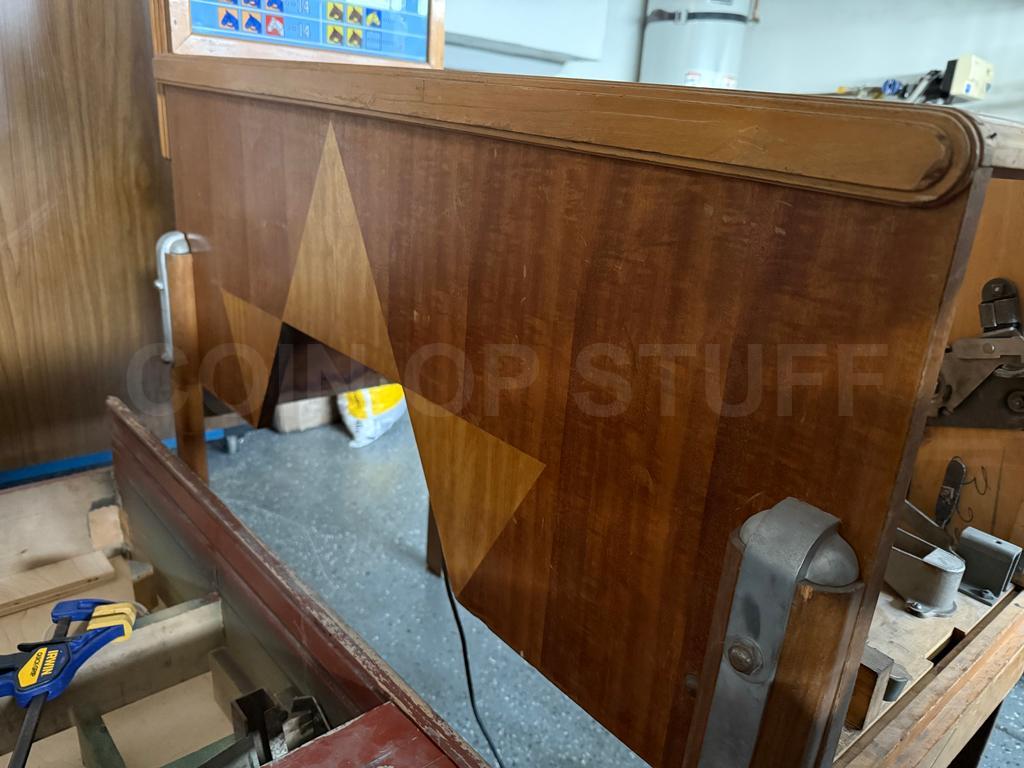

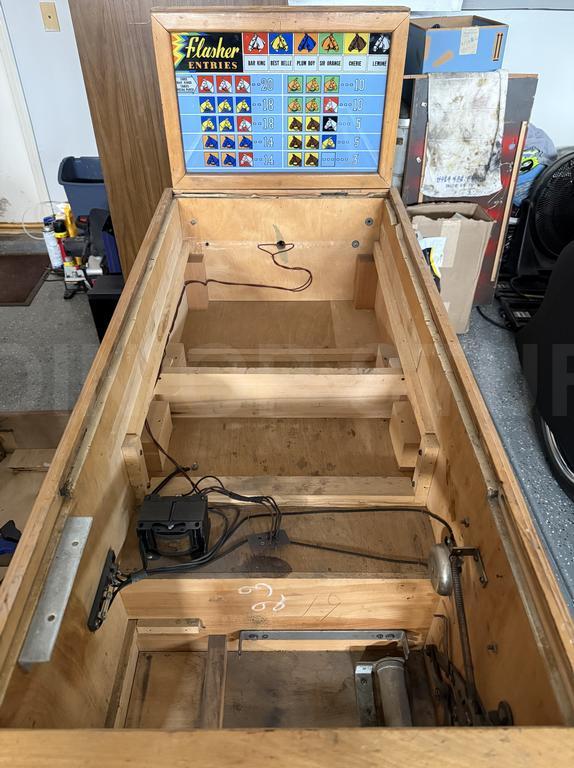

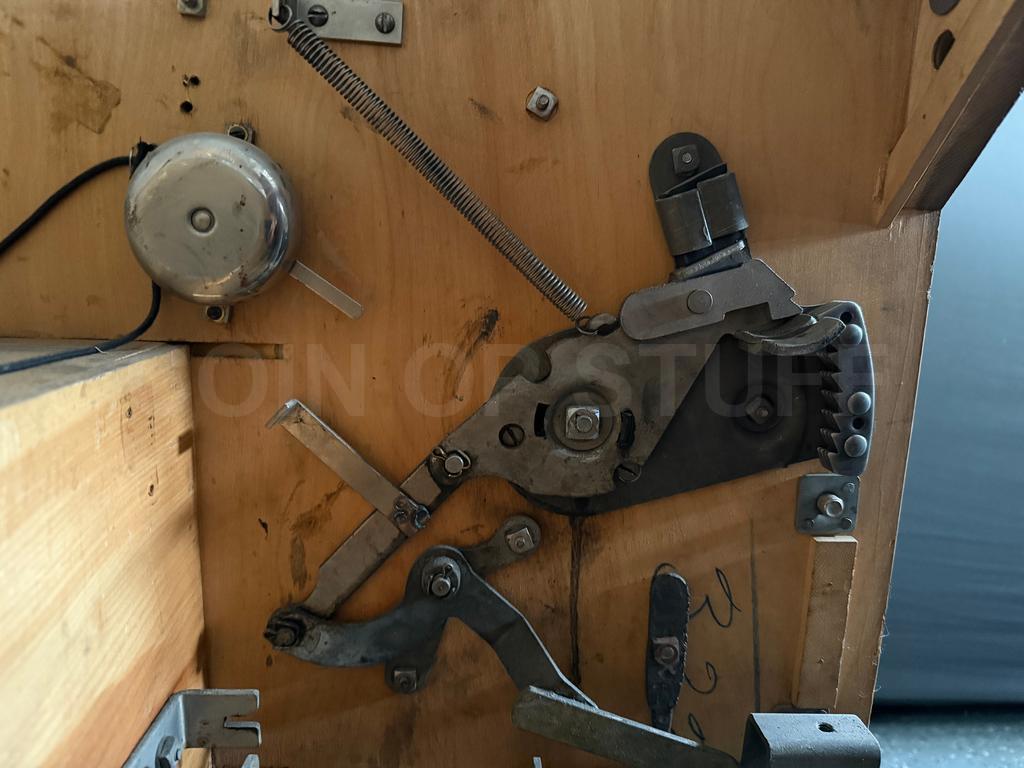

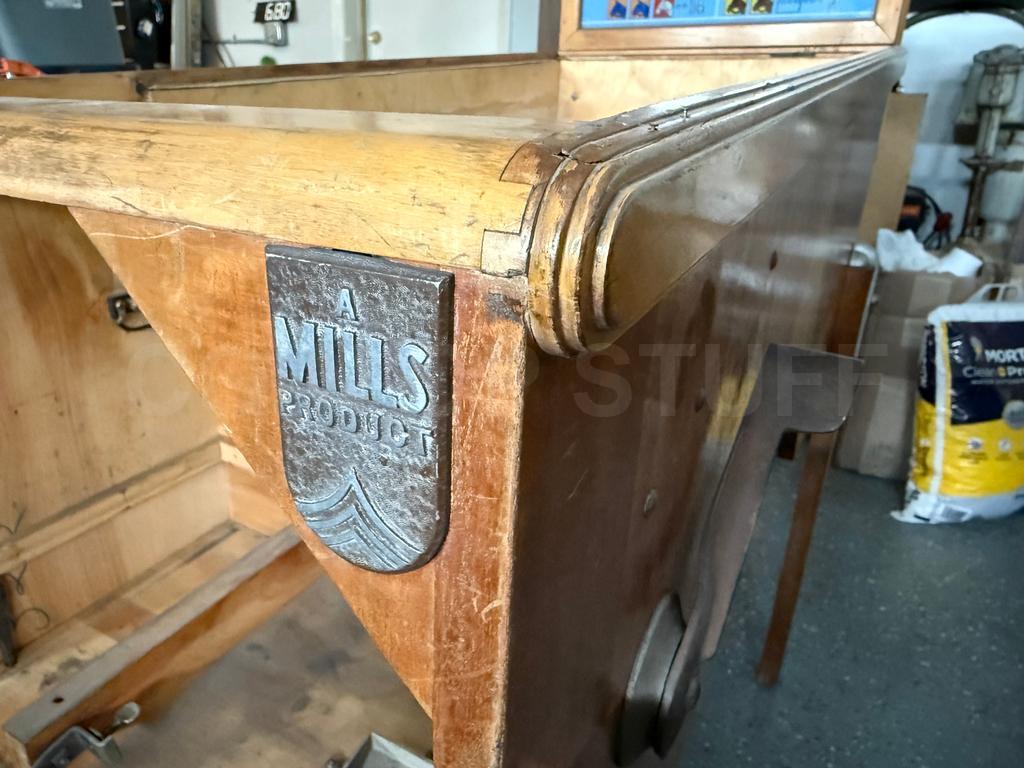

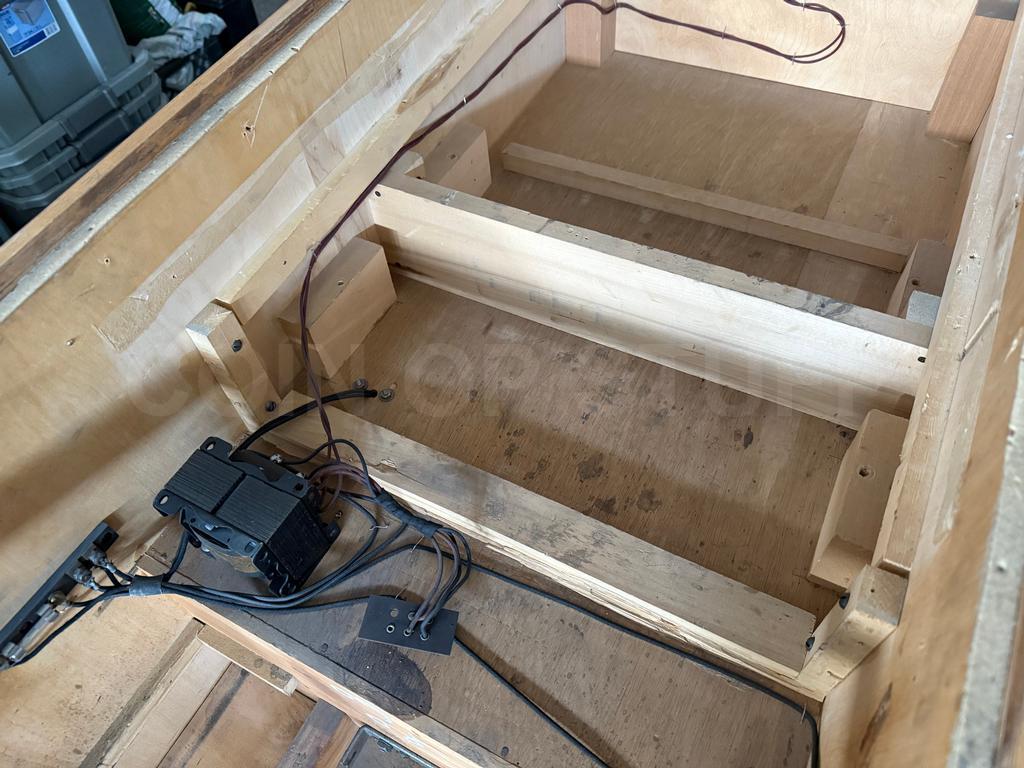

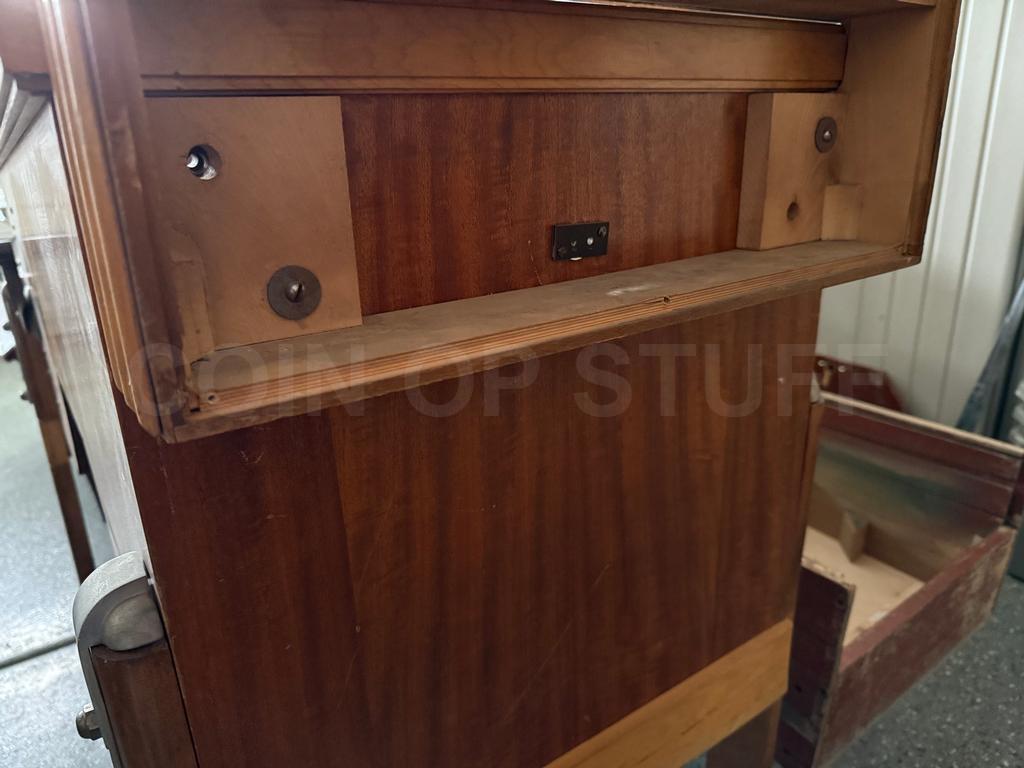

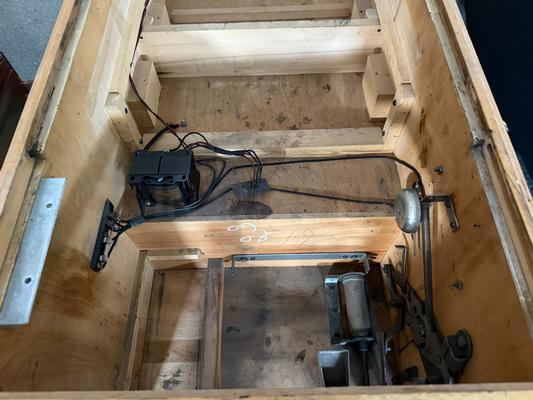

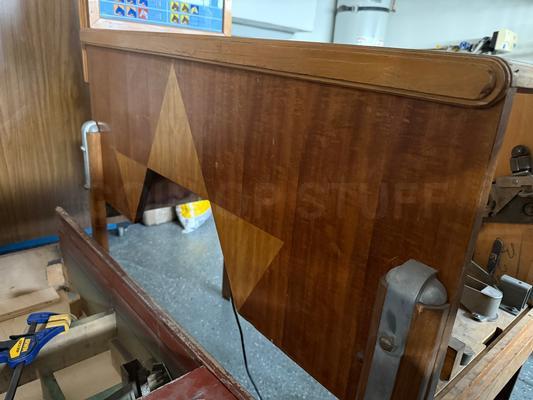

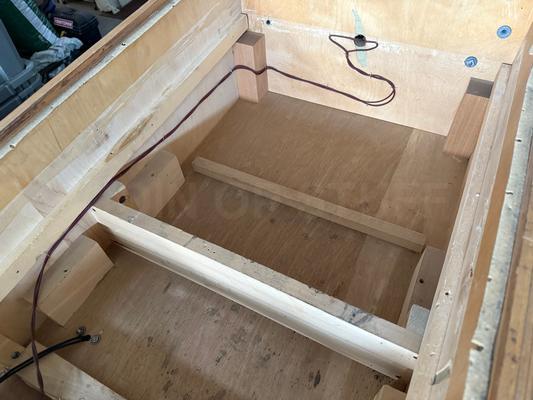

Cabinet Cleaning

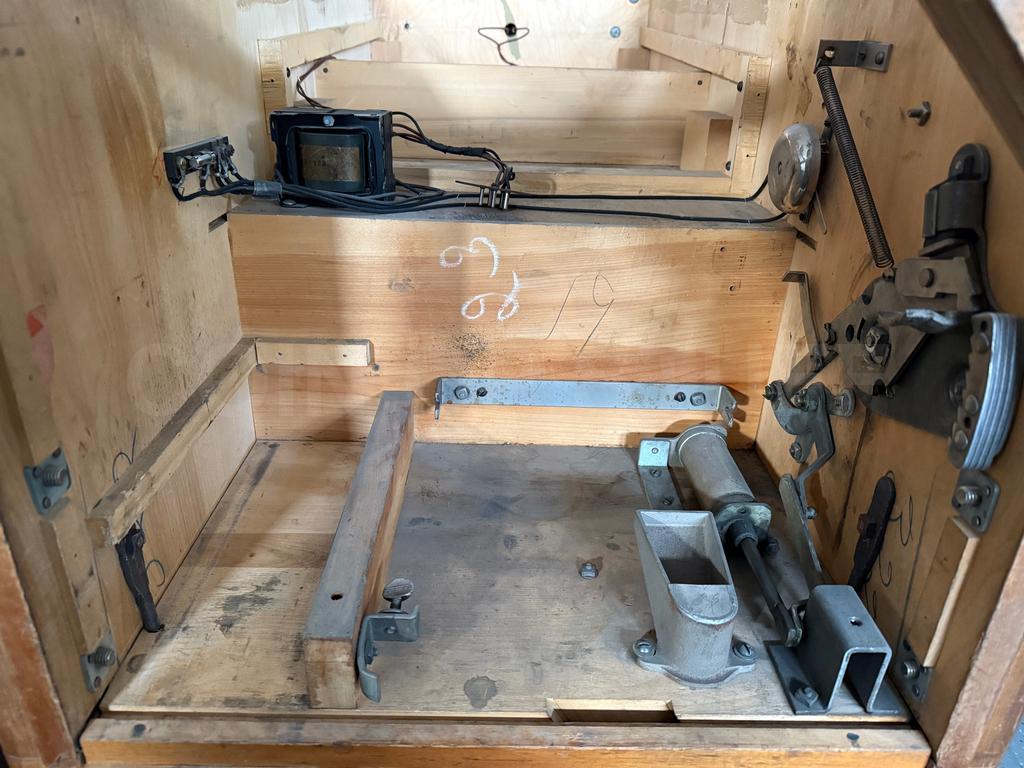

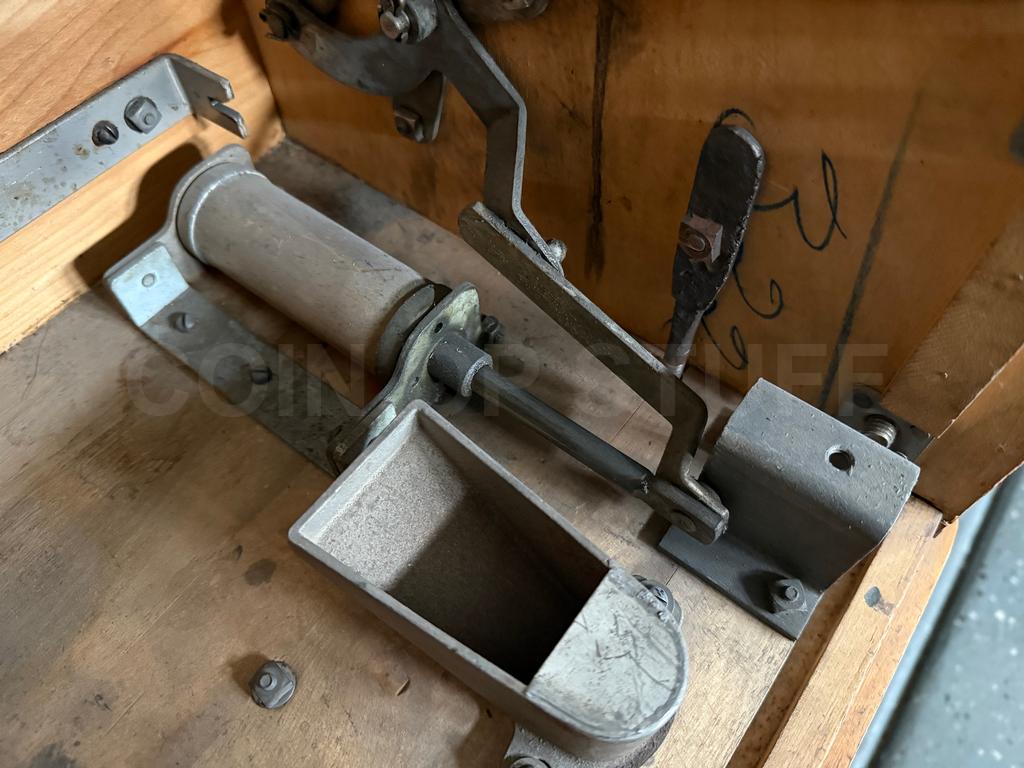

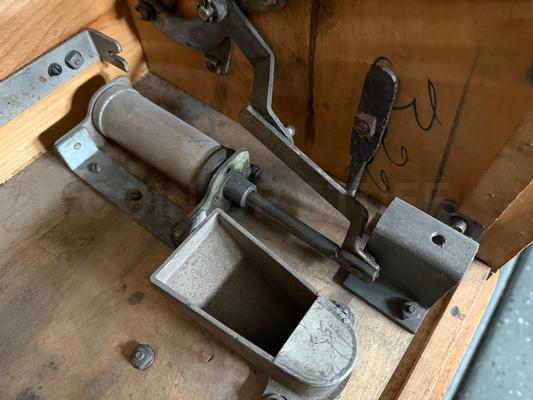

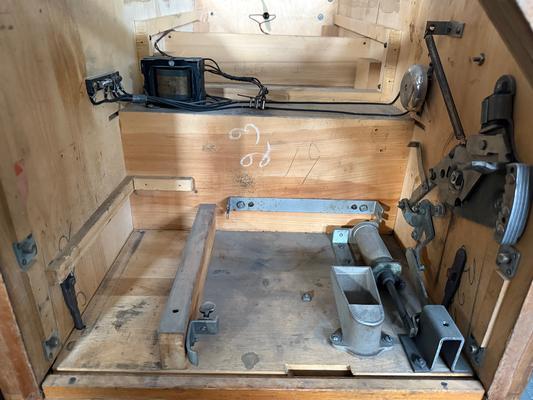

To be Cleaned and Greased
To be Cleaned and Greased

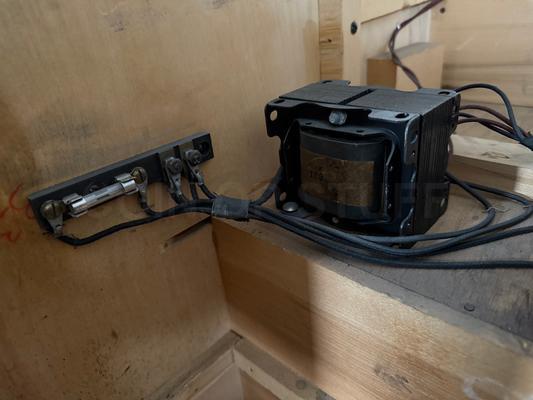

To be Tested

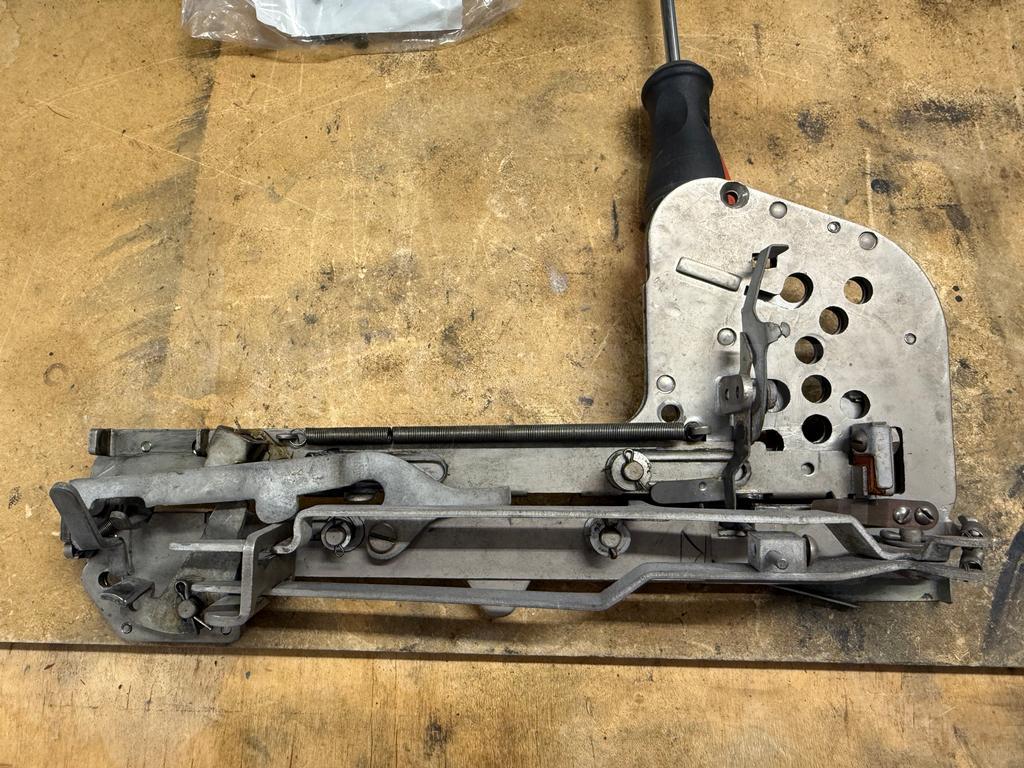

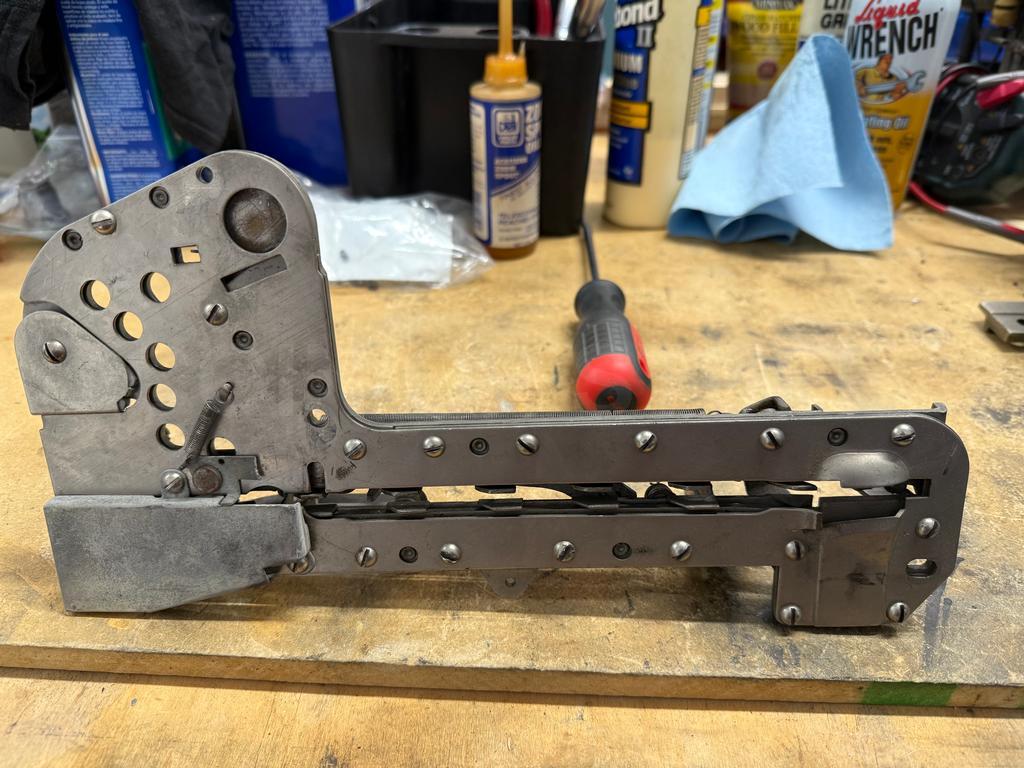

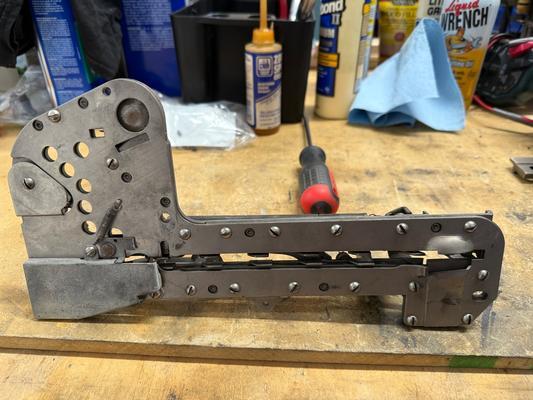

Escalator Teardown
Escalator Teardown

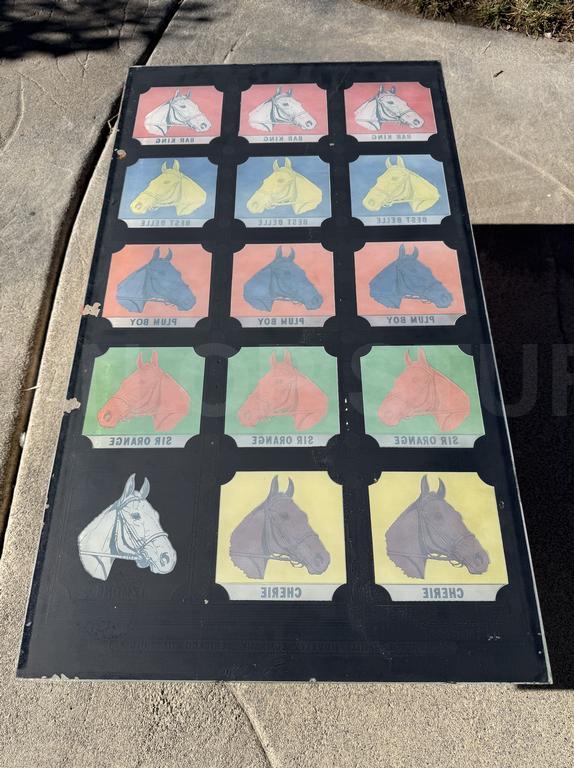

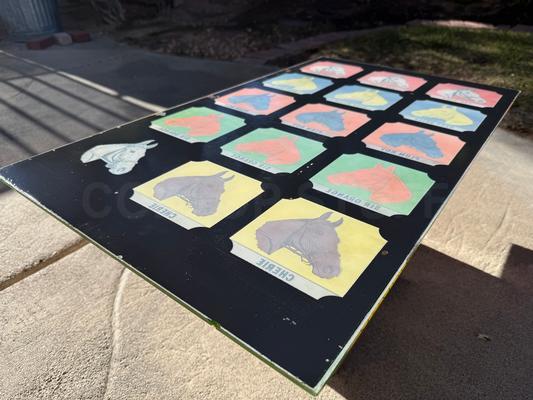

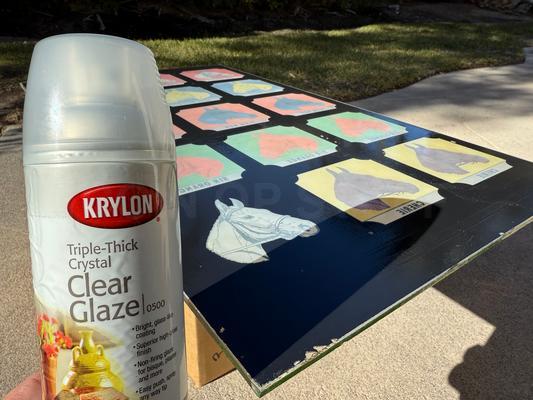

Playfield Glass Clearcoat
Playfield Glass Clearcoat
Playfield Glass Clearcoat
Playfield Glass Clearcoat

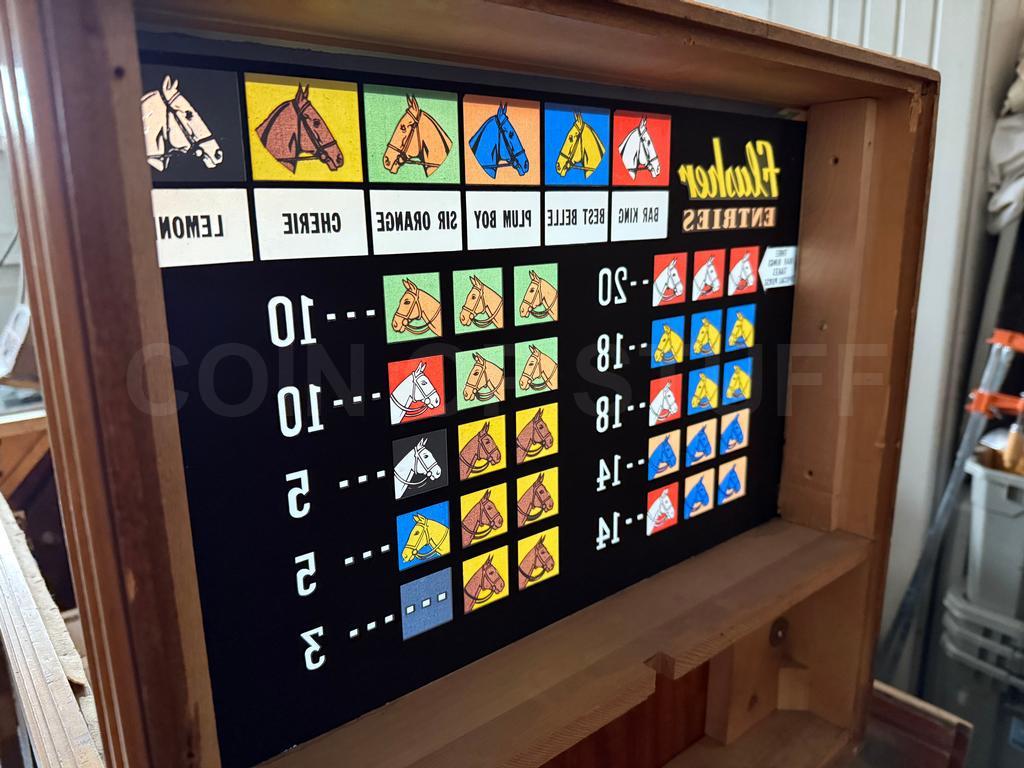

Getting There
