This offical Gonbes CGA/EGA/YUV to VGA Arcade HD-Converter PCB allows all types of RGB, EGA, VGA or YUV component signals to be up-converter and display on a 31KHz PC VGA monitor, TFT monitor, LCD display, or HD-TV with VGA connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically! A great alternative to purchasing a expensive, heavy CGA monitor. Use this converter with an existing computer monitor or install a lightweight LCD display or even use to build your own supergun!
See how simple the setup can be with this basic setup guide: -Click to view the basic setup guide-
Features/Specifications:

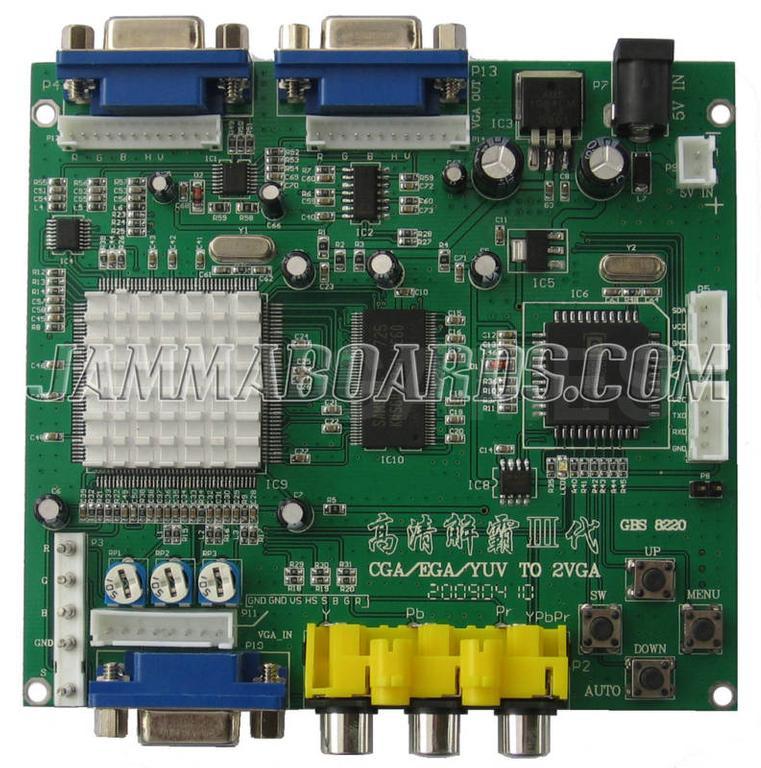

- Latest & official Gonbes GBS-8220 HD-Converter Board
- Supports CGA/EGA/VGA/YUV Component Signal Input

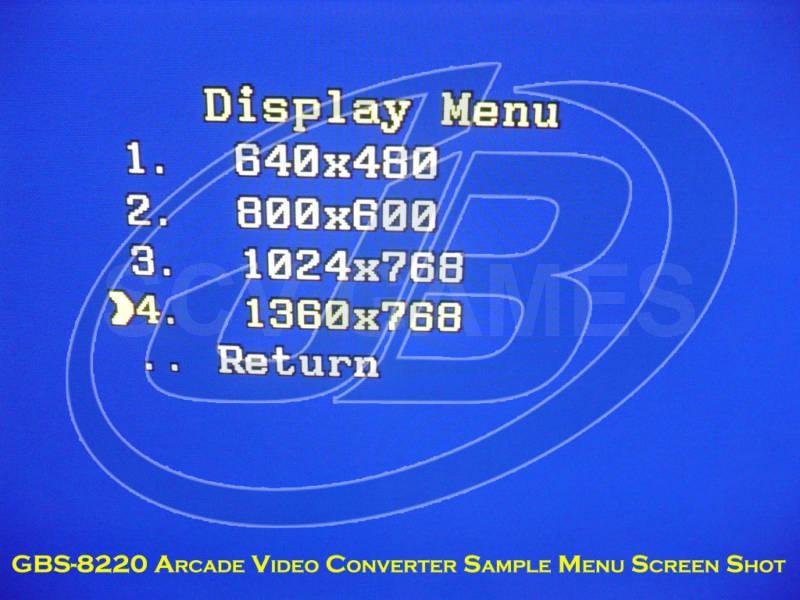

- Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
- CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
- YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)

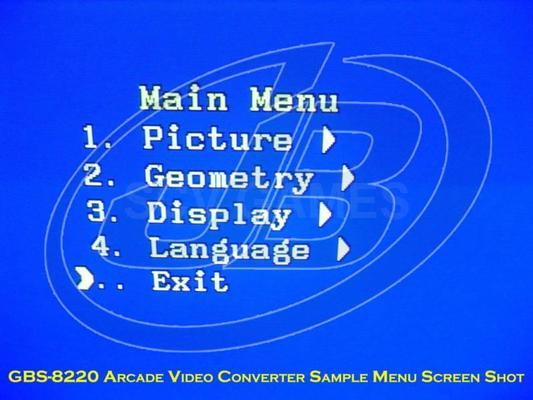

- On Screen Display (English and Chinese)

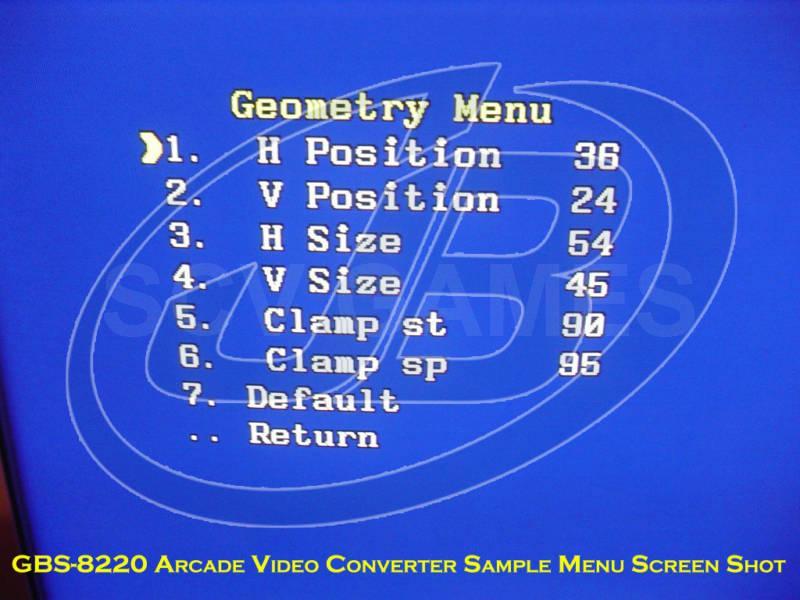

- Supports image position control & image zoom control
- True digital 24-bit A/D converter for true 16.7-million color conversion.
- Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)
|
Input Power |
5VDC +/- 0.5v (2A) |
P7 or P9 |
|
Input signal |
CGA/EGA
|
14.5kHz - 16.5kHz
23.5kHz - 25.5kHz
30.5kHz - 32.5kHz |
Auto scan
|
P3 or P11 or P10 |
|
RGBHV
|
30.5kHz - 32.5kHz |
Auto scan
|
P10 or P11 |
|
VGA
|
30.5kHz - 32.5kHz |
Auto scan
|
P10 or P11 |
|
Ypbpr
|
480p,576p,720p,1080p |
Auto scan
|
P2 |
|
Ycbcr
|
480i,576i,720i,1080i |
Auto scan
|
P2 |
|
Output signal |
VGA
|
640*480,800*600
1024*768,1360*768 |
P4 and P13 |
|
User controls |

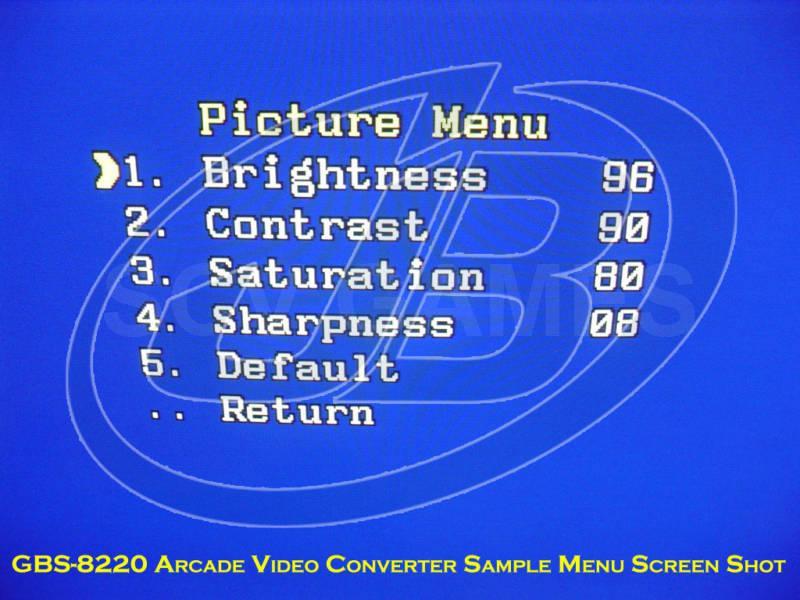

Input Switch, Image Zoom, Image Position,
Output Resolution ,R\G\B gain adjust. |
Menu Key
R\G\B VR |
PCB Dimensions:
- 115mm (W) x 105mm (D) x 20mm (H)
This Kit contains:
- GONBES GBS-8220 Model Arcade HD-Converter PCB (latest release)

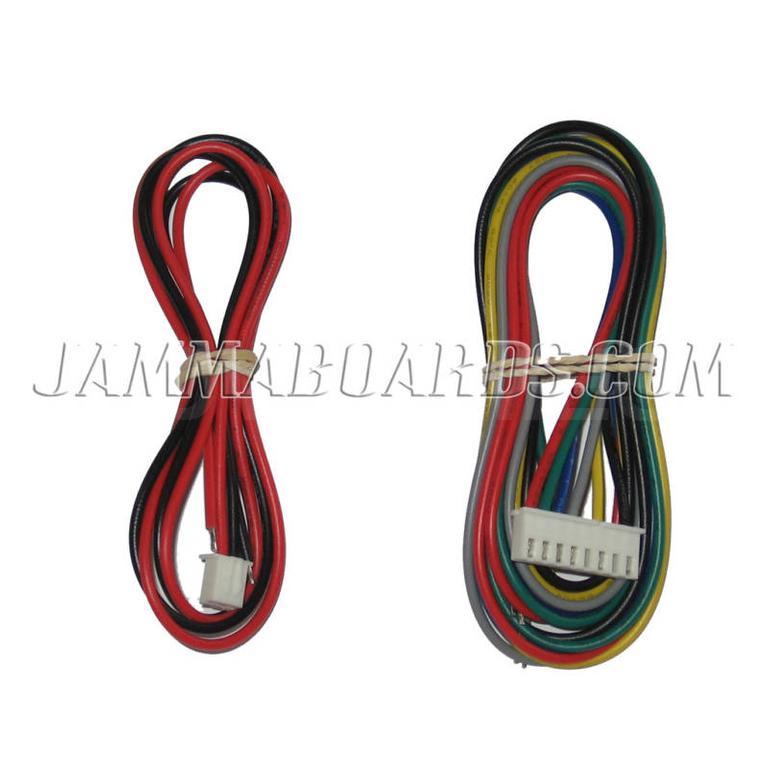

- Power Cable
- RGB Cable
- User Manual (Click here to view manual)
|
